Efficient - The twin-cam structure can achieve a rotation of 70 ° in a single stroke to complete the load-shifting platform switching. Stable - The optimized cam contour can achieve a jacking without impact. Simple - The integrated jacking reciprocator simplifies the overall structure. Compact - The integrated design effectively reduces the overall height of the load-shifting machine to 180mm.
description：

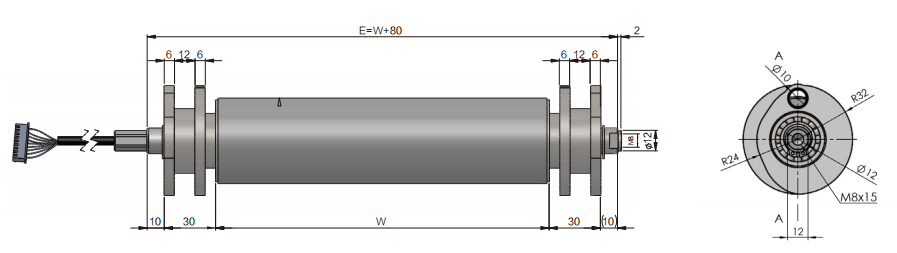

Dimensions for MDR of Φ50 jacked load-shifting (cam)

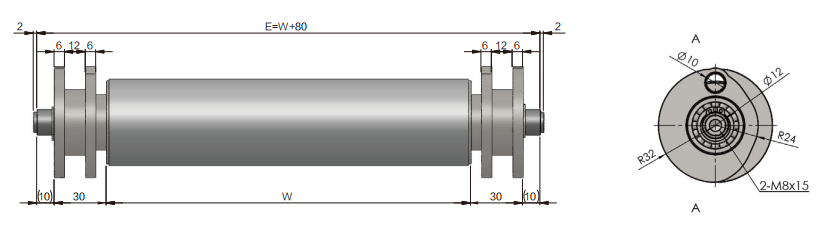

Dimensions for slave roller of Φ50 jacked load-shifting (cam)
ECO-mode
BOOST-mode
Load (Weight of Jacking Platform) *
<30kg
<50kg
Speed Code
15M
Rated Torque
2.97N·m
5.4N·m
Range of Speed Regulation
2.0 ~ 20.3m/min
2.0 ~ 14.7m/min
Maximum Efficiency
2400Pieces/hour（50% load-shifting switch rate）
*This load only refers to the weight of the jacking platform, independent of the cargo weight, and the horizontal position of the cargo will remain unchanged when switching the platforms.
The two platforms will keep the same height without drop height during switching, so as to avoid the impact caused by the cargo weight of goods, leading to failure or even damage.
