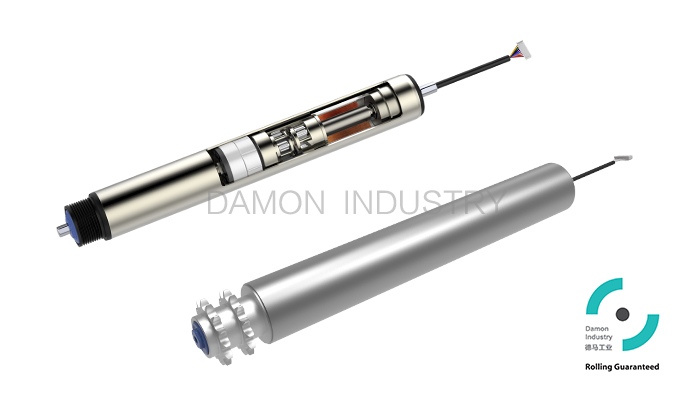

Cam MDR (PULSEROLLER) Series

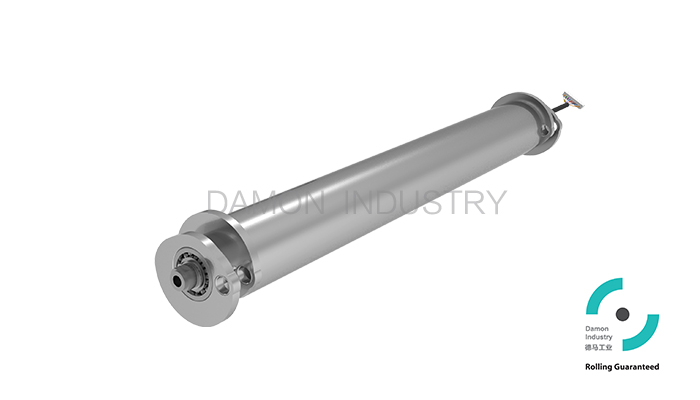

Heavy duty application (Main for Pallet Handing φ76)

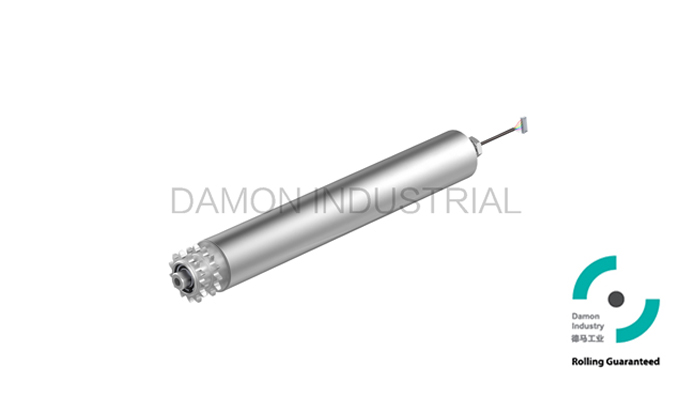

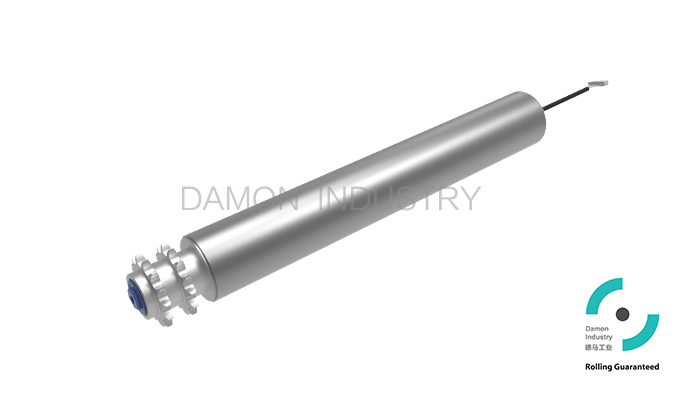

Light and middle duty application φ50 (Main for Carton&Plastic Box Handing)

1.Higer torque , able to handle up to 500kg goods per zone.
2.Lower energy consumption, lower more than 10% by new technology.
3.Wide speed , range up to 2-30m/min with Φ50.
4.Easier control , 4 types of drive cards to meet the intelligent performance.

description：


Dia: Φ50mm

Speed Code	Gearbox	ECO-mode					BOOST-mode
		Speed (m/min)	Torque(N·m)		Tangential force(N)		Speed (m/min)	Torque(N·m)		Tangential force(N)
		Speed (m/min)	Rated	Starting	Rated	Starting	Speed (m/min)	Rated	Starting	Rated	Starting
15	3stage	2.0~20.3	2.97	16.39	118.80	655.70	2.0~14.7	5.40	21.37	216.00	855.00
20		2.7~27.7	2.17	12.00	86.90	480.00	2.7~20.0	3.95	15.64	158.10	625.80
25		3.4~33.8	1.78	9.83	71.20	393.40	3.4~24.4	3.24	12.82	129.60	513.00
35	2stage	4.9~49.9	1.20	6.66	48.30	266.60	4.9~36.1	2.19	8.69	87.80	347.70
45		6.0~60.8	0.99	5.46	39.60	218.50	6.0~44.0	1.80	7.12	72.00	285.00
60		8.2~83.1	0.72	4.00	28.90	160.00	8.2~60.1	1.31	5.21	52.70	208.60
75		10.1~101.4	0.59	3.27	23.70	131.10	10.1~73.3	1.08	4.27	43.20	171.00
95	1stage	13.3~133.8	0.44	2.48	17.90	99.30	13.3~96.8	0.81	3.23	32.70	129.50
125		18.1~182.5	0.33	1.82	13.20	72.80	18.1~131.9	0.60	2.37	24.00	95.00
175		24.7~249.3	0.24	1.33	9.60	53.30	24.7~180.3	0.43	1.73	17.50	69.50
215		30.2~304.1	0.19	1.09	7.90	43.70	30.2~219.9	0.36	1.42	14.40	57.00

ECO mode, rated current 2.5A, starting current 3.0A.

Under BOOST mode, the rated current is 3.5A, and the starting current is 5.0A.

Please ensure that the cable end axis of MDR is conductive to the rack which is effectively grounded to ensure that static electricity can be effectually discharged.

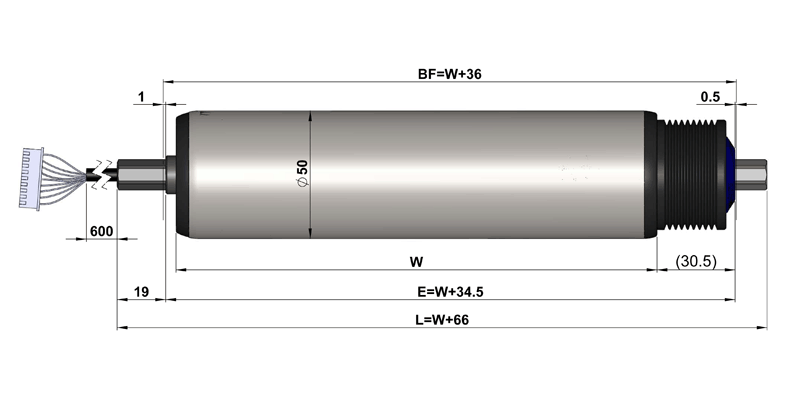

Minimum length W (unit: mm); diameter of φ50

Speed Code	Drive mode
	Gravity (straight type)				Poly-vee/O-belt wheel/synchronous pulley				Double-sprocket (08B14T)		Double-groove (5030)		Double-groove (3530)
	Spring-in type		Internal thread		Spring-in type		Internal thread		Internal thread		Spring-in type		Internal thread
	W	BF	W	BF	W	BF	W	BF	W	BF	W	BF	W	BF
15,20,25 Standard type	340	350	300	310	335	371	310	346	270	333	345	355	330	340
15,20,25 Reinforcedtype	-	-	-	-	-	-	701	742	-	-	-	-	-	-
35,45, 60,75	310	320	275	285	310	346	285	321	245	308	320	330	305	315
95,129, 179, 219	294	304	254	264	289	325	264	300	224	287	299	309	284	294

Maximum pulley roller length: 1,000m (If the length is beyond 1,000mm, please contact us).

Synchronous pulley types support internal thread installation only.

Catalog Download Drawing Download
