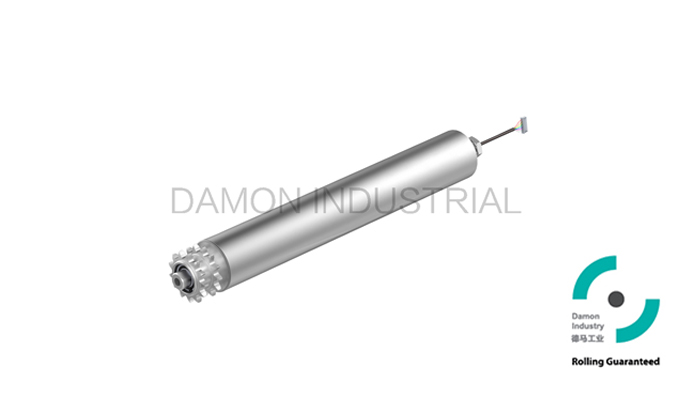

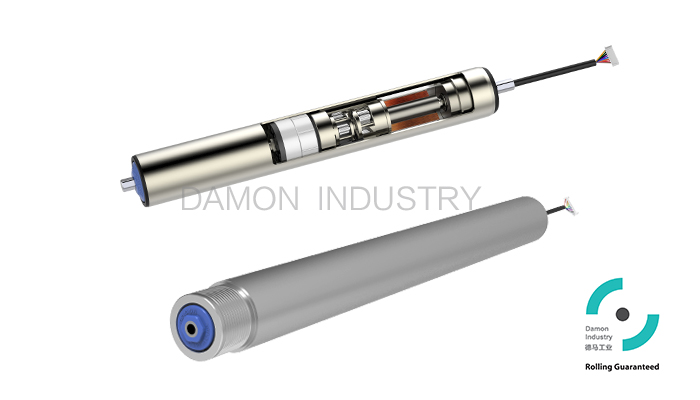

Heavy duty application (Main for Pallet Handing)

1.Space saving, simple design, easy to install.
2.High torque, handle the wooden pallet up to 1400kg.(Φ60.5)
3.Integrated sofe start/stop speed control to ensure stable running.

description：



Dia: Φ76.3mm

Speed Code	BOOST-8 mode
	Speed （m/min）	Torque（N·m）		Tengential（N）		Current（A）
	Speed （m/min）	Rated	Starting	Rated	Starting	Rated	Starting
8	1.5~11.0	10.9	49.3	287.2	1292.7	3.5	8.0
10	2.1~15.0	8.0	36.1	210.6	948.0
15	3.1~22.4	5.4	24.3	141.5	636.9
20	4.2~30.6	3.9	17.7	103.6	466.2

Remark: Equipped with EZ-24HTB drive card.(Φ60.5 are available)
