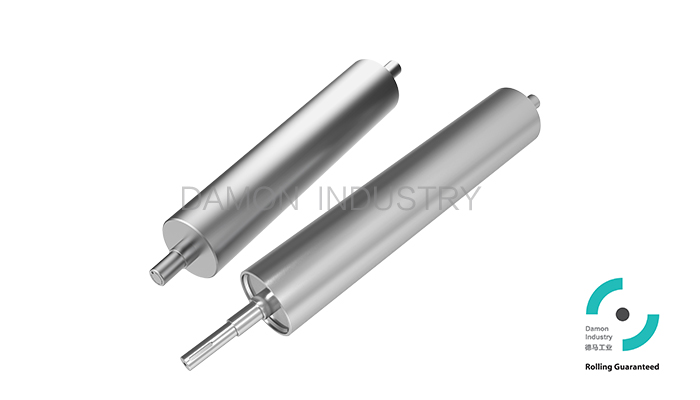

BP-R Series Pulley (Fixed Shaft)
1.Fitted with precision bearings
2.Precision machining, smooth rotation
3.High load capacity, reliable and durable
description:


Belt Conveyor Pulley Products Overview 202106V2(9)-05.jpg

①  Driven Pulley:

Main driving component for centre drive belt conveyors:

Select BP-D series pulley (rotating shaft).


②  Head & Tail Pulley:

Installed at each end of a belt conveyor according to the different drive type and structure:

a、Centre drive:

Change the belt direction: Select BP-R series pulley (fixed shaft) or DP-D series pulley

(rotating shaft)

b、Head or Tail drive:

Drive Pulley: Select BP-D series pulley (rotating shaft)

Idler Pulley: Select BP-R series pulley (fixed shaft) or BP-D series pulley (rotating shaft).


③  Snub Pulley:

Used to increase the belt wrap angle for the driven pulley, tension and tracking the belt.

Select BP-R series pulley (fixed shaft) or 1200 series conveyor roller (anti-static).

Be careful about the belt tensionning and siding focce when using as redirection & tensioning.


④  Carrying Roller:

Used to support the belt, simplify structure and reduce friction:

Select 1200 series conveyor roller (anti-static)


Dimensions(Surface Z/P):





Standard   LengthRemarks
seriesTube dia (D)Tube(t)   Shaft dia. (d)Bearing   typeDrum   (D1)W
05DΦ51(3.0)Φ206204/450~1300
06CΦ59(4.5)Φ256205Φ5870~1300
07CΦ69(6.0)Φ306206
Φ68
70~1300
08KΦ75(4.5)Φ256005Φ7470~1300
Φ306008
08CΦ79

(4.5)

Φ256005Φ77.670~1300
Φ306306
08JΦ87(4.5) Φ256205Φ85.670~1300
Φ356307
10BΦ100(6.0) Φ306306Φ9870~1800
Φ406308
11DΦ112(6.0)Φ306306Φ11070~1800
Φ356307
12AΦ119(6.0)Φ306306Φ11770~1800
Φ40
6408
08JΦ87(4.5)Φ306206Φ85.6180~1300

Steel

Poly-vee


Straight tube is available-not tapered ; “( t )”is not accurate data.

available pulley diameter (D) ≥φ87 Dynamic balance request, blalance level: No higher than G6.3
