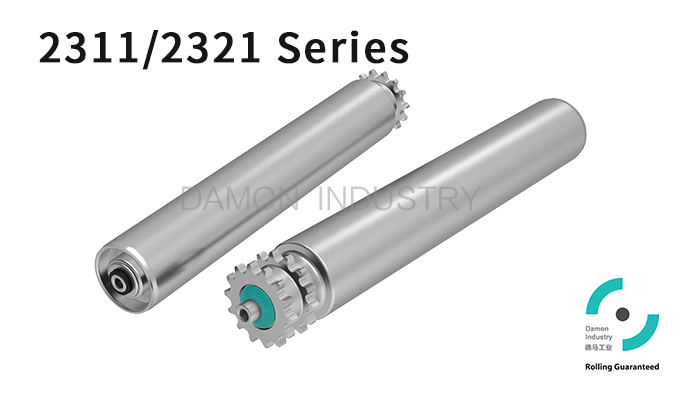

1.Using the polyamide sprocket roller as the drive element
greatly reduces the running noise.
2.The bearing end cap consists of a precision ball bearing,
a polymer housing and end cap seal. Combined they provide an
attractive, smooth and quite running roller.
3.The design of the end cap protects the bearings by providing
excellent resistance to dust and splashed water.
4.The weight of the goods to be conveyed should not exceed 150kg.
5.Standard configuration with anti-static design surface impedance≤106Ω。
6.Temperature range: -5℃ ~ +40℃.
7.Humidity range: 30-90% RH (non-condensation).
Please contact us if humidity out of this scope.
D | T | Shaft | Sprocket | A | B | C | Tube |
Steel Z/P | SS | Aluminium | PVC |
Φ50 | 1.5 | Φ12/15 | 08B14T | 17 | 22 | 18.5 | √ | √ | √ |
|
Φ50 | 2.5 | Φ12/15 | 08B14T | 17 | 22 | 18.5 |
|
|
| √ |
Φ60 | 2.0 | Φ12/15 | 08B14T | 17 | 22 | 18.5 | √ | √ | √ |
|
Marks：Φ50、60mm rollers can be fitted with PVC sleeve (2mm).
Φ50、60mm rollers can be fitted with PVC sleeve (2mm).
11hex can provide tapered plastic steel shaft sleeve roller.
