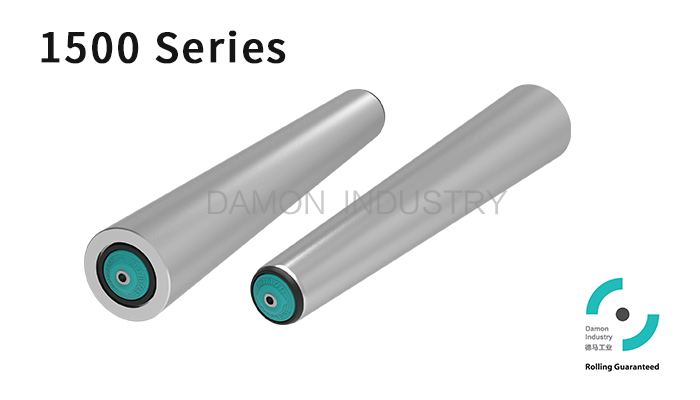

1.Based on the 2224 Series, covered with grey polypropylene taper sleeve;
abrasion resistant, low noise, shockproof.
2.In the case of sensitive to static electricity, you can choose anti-static tapered
sleeve (black), surface resistance value≤106Ω.
3.Using the polyamide sprocket roller as the drive element reduces the running noise.
4.The bearing end cap consists of a precision ball bearing, a polymer housing and
end cap seal. Combined they provide an attractive, smooth and quite running roller.
5.The design of the end cap protects the bearings by providing excellent
resistance to dust and splashed water.
6.To avoid abrasion between the sprocket and chain, the angle between
tapered rollers should not exceed 5°.
7.The weight of single items to be conveyed should not exceed 50kg.
8.Temperature range: -5℃ ~ 40℃.
9.Humidity range: 30-90% RH (non-condensation).
Please contact us if humidity out of this scope.
![2624.jpg 2624.jpg](/upload/image/20180212/6365404724364904269913237.jpg)
D | t | Shaft | Taper Legth | D1 | D2 |
Φ50 | 1.5 | Φ12/15 | 295 | Φ52.5 | Φ71 |
345 | Φ55.6 | Φ77.3 |
395 | Φ52.5 | Φ77.3 |
445 | Φ55.6 | Φ83.6 |
495 | Φ52.5 | Φ83.6 |
545 | Φ55.6 | Φ89.9 |
595 | Φ52.5 | Φ89.9 |
645 | Φ55.6 | Φ96.2 |
695 | Φ52.5 | Φ96.2 |
745 | Φ55.6 | Φ102.5 |
795 | Φ52.5 | Φ102.5 |
845 | Φ55.6 | Φ108.8 |
895 | Φ52.5 | Φ108.8 |
Remark : 1.Steel Z/P and SS tubes are available.
2.Anti-static taper sleeve (black) available.
The taper sleeve length dimension (WT) is not accurate
