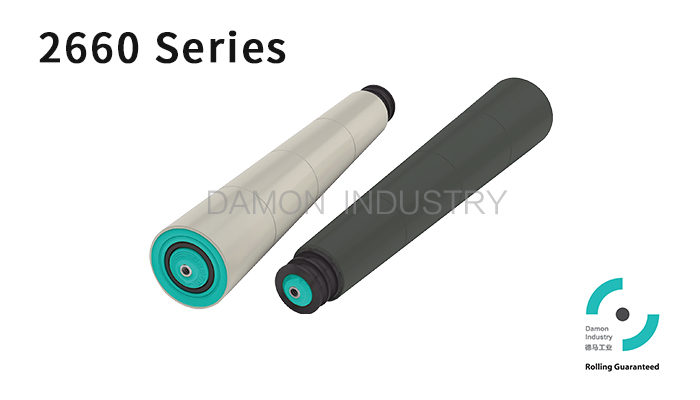

Polymer Poly-Vee Tapered Sleeve Roller
1.Poly-vee drive, high speed, low noise
2.Light weight, easy start-up
3.Suitable for light&middle duty convey
4.Temperature range: - 5℃ ~ + 40℃
5. Applicable humidity: RH≥30%
description:


1.Based on the 2250 Series, covered with grey polypropylene taper sleeve;

abrasion resistant, low noise, shockproof.

2.In the case of sensitive to static electricity, you can choose anti-static tapered

sleeve (black), surface resistance value≤106Ω.

3.The poly-vee pulley is located on the head end of the roller which separates

the drive area and the conveying area avoiding interference between the

poly-vee belt and the conveyed goods.

4.The bearing end cap consists of a precision ball bearing, a polymer housing and

end cap seal. Combined they provide an attractive, smooth and quite running roller.

5.The design of the end cap protects the bearings by providing excellent resistance

to dust and splashed water.

6.ISO9982 PJ series poly-vee. Total of 9 grooves at 2.34mm pitch.

7.The duty capacity of the roller depends on the type of poly-vee belt

and transmission layout. The weight of single items to be conveyed should not

exceed 50kg.

8.The roller is light, easy start-up.

9.Temperature range: -5℃ ~ 40℃.

10.Humidity range: 30-90% RH (non-condensation).

    Please contact us if humidity out of this scope.




DtShaftTaper LegthD1D2
Φ501.511hex,Φ12/15295Φ52.5Φ71
345Φ55.6Φ77.3
395Φ52.5Φ77.3
445Φ55.6Φ83.6
495Φ52.5Φ83.6
545Φ55.6Φ89.9
595Φ52.5Φ89.9
645Φ55.6Φ96.2
695Φ52.5Φ96.2
745Φ55.6Φ102.5
795Φ52.5Φ102.5
845Φ55.6Φ108.8
895Φ52.5Φ108.8


Remark: 1.Steel Z/P and SS tubes are available.

               2.Anti-static taper sleeve (black) available.

              Please choose the steel Poly-Vee roller when you must use 4PJ belt.

              The taper sleeve length dimension (WT) is not accurate
